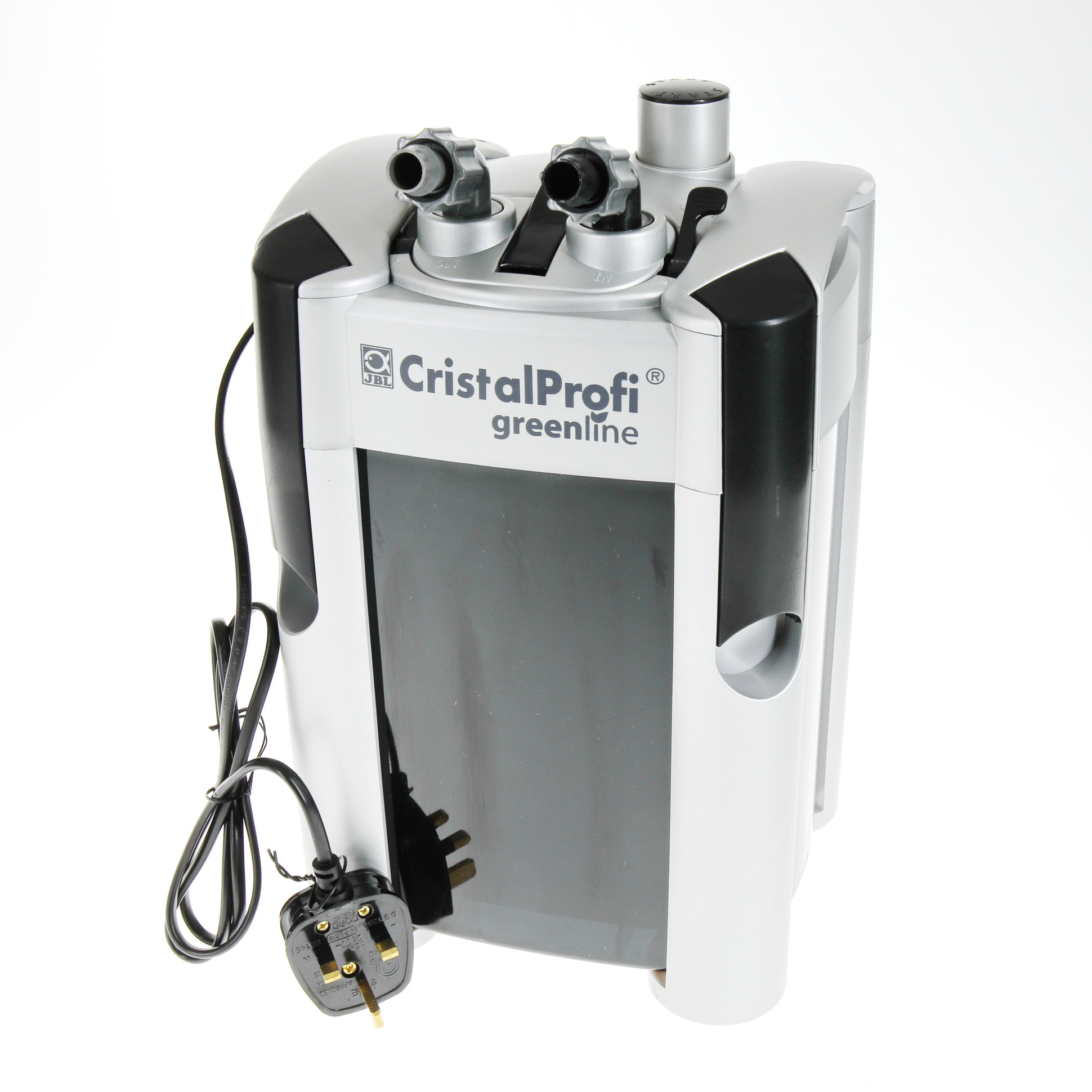

JBL CRISTALPROFI e702 greenline
External filter for aquariums from 60-200 litres

  • External filter for clean and healthy aquarium water: closed water circulation system for aquariums of 60-200 litres (60-100 cm)
  • Fully equipped and ready to connect: built-in quick-start priming button, filter start without manual priming. Simple assembly
  • Extremely smooth running at 700l/h pump performance, patented new pre-filter system, 100% more surface than in model 701. High/biological filter perform. with volume of 6.1l, water stop, 360° rotat. hose connections, easily exchangeable filter media
  • TÜV tested, safe and energy-efficient: lower power consumption than comparable previous models – consistent performance. Guarantee: 2 years (+2 years upon registration of the product)
  • Package contents: external filter unit for aquariums, incl. hoses & pipes 12/16 mm, intake strainer, elbow, suction cups, filter media (bio-filter balls and bio-filter foam), dimensions (L/H/W): 18 x 20 x 35 cm
Find out more
Price: 148,90 €
Recommended retail price incl. VAT
You can find this item in your specialist and online shop
Product information

Clean and healthy water
Plant and food remains and metabolic substances lead to a deterioration of the quality of the water in the aquarium. Good water quality is necessary for healthy fish and plants. This can be achieved with aquarium filters. The filters suck in the aquarium water and remove the pollution and waste materials from the water. Filters also offer an ideal habitat for bacteria which decompose harmful substances.

Easy to install
The external filter is completely equipped and ready to connect. The built-in quick-start device makes the filter easy to install without the need for manual priming. The filter media are included in the contents.

Easy to clean
Replacing the easy to reach pre-filter means that you only rarely need to clean the rest of the filter. The large filter volume provides a high biological filtering performance involving several filter layers. The bio-filter balls inside have different diameters. This promotes the self-cleaning effect.

Energy efficient and safe
With only 9 W power consumption the CristalProfi e 702 offers substantial energy savings. The patented hose connection block with water-stop prevents water leakage when the block is disconnected from the filter. JBL CristalProfi is TÜV tested.

New compared to the model JBL CristalProfi e 701 is the completely new and efficiently designed upper filter basket: It contains now a double as large one-piece filter mat as pre-filter instead of 2 small externally arranged pre-filter mats in the filter basket. This way the pre-filters don’t clogg as easily, even if there is a considerable amount of dirt, and the pre-filters don’t need to be cleaned as often.

Videos
Details

JBL CRISTALPROFI e702 greenline

Art. no.:
6028111
EAN Code:
4014162045973
Performance:
700 l/h
Watt:
9 W
Volume packaging:
24.6 l
Gross weight:
5718 g
Net weight:
4864 g
Weight factor:
0
Packaging dimensions (l/h/w):
240/360/285 mm

Properties

Animal species: Armored catfish, Arowana, Axolotl, Barbels, Bettas, Bichirs/reedfish, Blowfish, Catfish, Cichlids (South America), Clawed frogs, Clawed shrimps, Corals, Crayfish, Crustaceans, Danions, Discus, Dwarf crayfish, Dwarf shrimps, Flowerhorn, Gill maggots, Gobies, Goldfish, Gouramis, Guppy, Juvenile fish, Killifish, Livebearers, Loaches, Mussels, Newts, Panchaxes, Rainbowfish, Snails, Spiny eels, Terrapins, Tetra, Tropical terrapin, Veiltails, Water turtles, blood parrot cichlids, freshwater butterflyfish
Animal size: For all animal sizes
Animal age group: All aquarium fish
Volume habitat: 60-200 L ( 60-100cm)
Material: plastic (material mix: ABS, SAN, POM) / metal (copper)
Colour: silver / black

Electronic label / illuminant

Mercury: No
Dimmable: No

Technical Data

capacity in litres:200 l
capacity from - to:60-200l
capacity tank length:100 cm
power output in Watt:9 W
output per hour:700l/h
Height:350 mm
Length:180 mm
Width:210 mm
voltage:230 V
filter canister volume:6.1 l
volume filter materials:3.5 l
hose connections Discharge/Out:12/16mm
hose connections Suction/In:12/16mm
pumping head:1.8
FAQ
Can the filter be placed next to the aquarium?

No, as a rule this is not possible. Otherwise air will be sucked in and the water will come to a standstill. The filter will not work properly. If it is installed next to the aquarium, there should be a distance of at least 20 cm between the water surface and the top edge of the filter. When placing the filter in the aquarium cabinet, the difference in height between the water surface and the filter bottom must not exceed 180 cm (max. 120 cm for e402).

Wear on the impeller - When should I replace it?

There is no general answer to this question. As with a car tyre, the duration and intensity of use is decisive. Many customers use the impellers for several years without any noticeable change. Heavy use of the impeller results in a shorter service life. With a car, you know the wear and tear caused by heavy braking, mechanical damage and many kilometres driven.

The following factors apply to an impeller:

1. Running time in hours
2. Throttling of the flow rate (max. 50 %) and thus lower cooling capacity
3. Dry running during water change (see 2.)
4. Mechanical damage (e.g. by snails, improper installation after removal, ...)
5. Heavy soiling

As it is a wearing part, the impeller is not covered by the warranty. For a long service life, you need to clean it regularly. This will prevent increased running noises. The impeller housing, the impeller and the shaft can be cleaned with a suitable cleaning brush.

If it is necessary to replace the impeller due to wear, always replace the complete set, impeller with shaft and 2 rubber bearings. This is the only way to ensure proper functioning and smooth running. When removing the impeller and shaft, a rubber bearing often gets stuck at the bottom of the impeller housing and is very difficult to remove. JBL has developed its own special tool for this purpose, which is available from pet shops under the name "Pulling aid for impeller bearing". A useful cleaning brush for the impeller housing is also included in the tool.

Why do the locking clips have a structured texture?

A further enhancement of the locking clips has ensured even more stability. The locking clips of the CristalProfi external filters are made of glass fibre reinforced plastic to ensure higher stability. This is easily discernible by its slightly fibrous texture.

My filter has become loud after a few months. What’s the reason for that?

The impeller of the filter is subject to constant wear and tear. We recommend you replace it. This way its smooth running is ensured. Make sure that the noises are not caused by trapped air.

The guarantee covers defects in material and assembly. The guarantee does not cover parts subject to wear and tear, such as the impellers or shafts as well as damage caused by external influences and improper handling.

My filter won’t start back up again. What should I do ?

Please check the following: remove the pump head from the filter casing, remove the impeller cover and check whether the impeller is stuck. Remove the impeller and clean it and the impeller shaft. Afterwards reinstall the parts. Then shortly insert the plug into the socket. The impeller will run again and the magnetic force should be noticeable.

Show more FAQs ...
